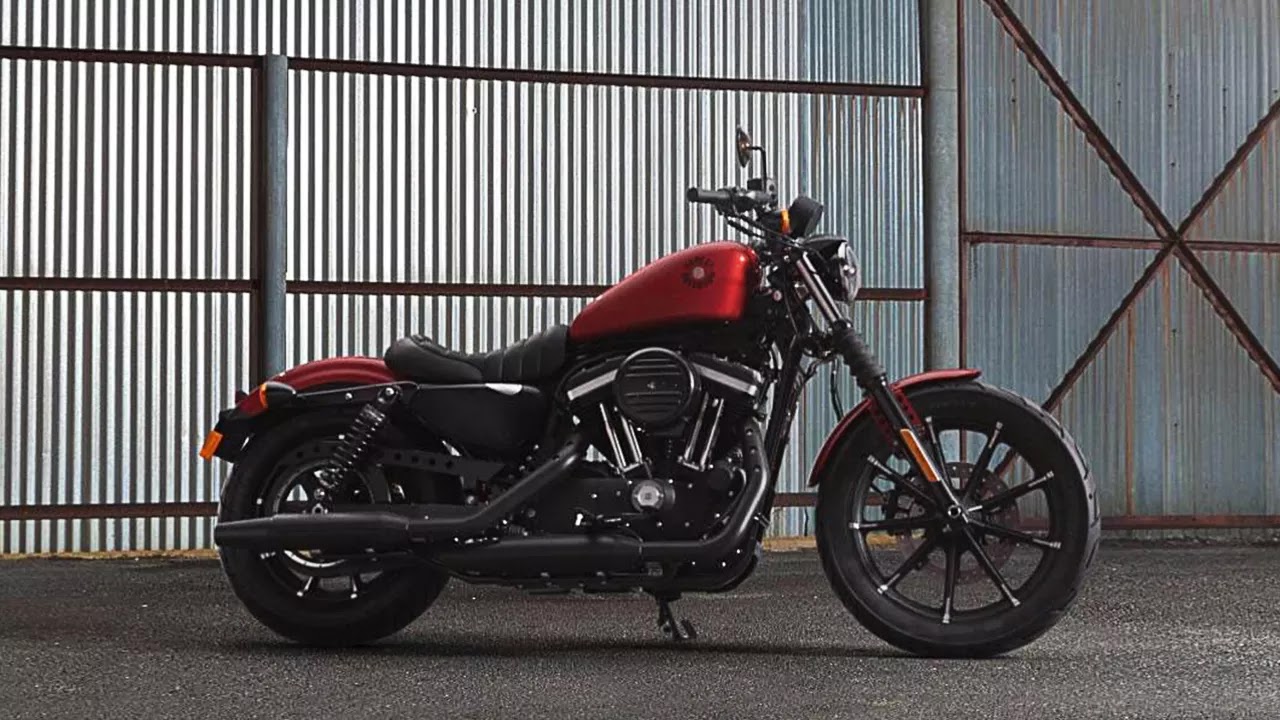

Harley-Davidson Iron 883 Specifications & Features

Rs.9.23 Lakh^*

Get On Road Price

Harley-Davidson Iron 883 Summary

Iron 883 key highlights
Displacement	883 cc
Mileage	20 kmpl
Kerb Weight	256 kg
Colours	Black Denim Industrial Gray Denim Wicked Red Rawhide Denim Rugged Gold Denim Silver Flux / Black Fuse

Harley-Davidson Iron 883 Mileage

As reported by Harley-Davidson Iron 883 owners, the real mileage of Iron 883 is 18 kmpl. As per ARAI, the average of Harley-Davidson Iron 883is 20 kmpl. It delivers better mileage that 79% of cruisers.
 With a fuel tank capacity of 12.5 litres, this bike can go upto 240 kms on full tank.

Iron 883 Average

ARAI certified mileage	20 kmpl
Owner reported mileage	18 kmpl

Iron 883 Specifications & Features

Specifications

 Engine & Transmission



Displacement883 cc

Emission StandardBS-IV

Cylinders2

Max Power50 bhp @ 5,500 rpm

Maximum Torque70 Nm @ 3,500 rpm

Bore76 mm

Stroke97 mm

Valves Per Cylinder2

Compression Ratio9.0:1

Fuel Delivery SystemFuel Injection

Fuel TypePetrol

IgnitionElectronic Sequential Port Fuel Injection (ESPFI)

Spark Plugs1 Per Cylinder

Cooling SystemAir Cooled

Gearbox TypeManual

No. of Gears5

Transmission TypeBelt Drive

ClutchWet Multiplate

Brakes, Wheels & Suspension

Front Brake TypeDisc

Front Brake Size292 mm

Rear Brake TypeDisc

Rear Brake Size292 mm

Calliper TypeDual-piston front, single-piston rear

Front Wheel Size19 inch

Rear Wheel Size16 inch

Front Tyre Size100/90B19 57H

Rear Tyre Size150/80B16 77H

Tyre TypeTubeless

Radial TyresYes

Wheel TypeAlloy

Front Suspension39 mm Showa

Rear SuspensionCoil Over, Preload Dual Adjustable

Dimensions & Chassis

Kerb Weight256 kg

Overall Length2,185 mm

Overall Width820 mm

Overall Height1,120 mm

Wheelbase1,515 mm

Ground Clearance140 mm

Seat Height760 mm

Chassis TypeMild Steel,Tubular Frame

Fuel Efficiency & Performance

OdometerDigital

Braking System Dual Channel ABS

SpeedometerAnalogue

Fuel GuageYes

TachometerDigital

Stand AlarmYes

Stepped SeatNo

No. of Tripmeters2

Tripmeter TypeDigital

Low Fuel IndicatorYes

Low Oil IndicatorYes

Low Battery IndicatorYes

Pillion BackrestNo

Pillion GrabrailNo

Shift LightYes

KillswitchYes

ClockYes

Electric System12V DC

Battery12V, 12-AMP/Hour.200 CCA

Headlight TypeBulb and Reflector Type

Headlight Bulb Type55/60 W

Brake/Tail LightLED Type

Turn SignalYes

Pass LightYes

Pillion Seat--

Pillion FootrestYes

Digital Fuel GuageYes

Start TypeElectric Start

Electricals

• Battery12V, MF
• HeadlightHalogen
• Tail LightLED

Harley-Davidson Iron 883 Overview

Harley Davidson Iron 883 is an entry level cruiser and is assembled in India.

This one has more sporty credentials and as the name suggests is the recipient of an 883cc 4-valve engine that produces 50bhp.
 The 6 speed gearbox transmits power to the rear wheel via a transmission belt. A tubular steel frame forms the basis of the motorcycle and it gets a 100/90 B19 tyre at the front and 150/80 B16 at the rear tyre.
The bike weighs in at 260kg and is available in 3 colours vivid black, big blue pearl and black denim.
